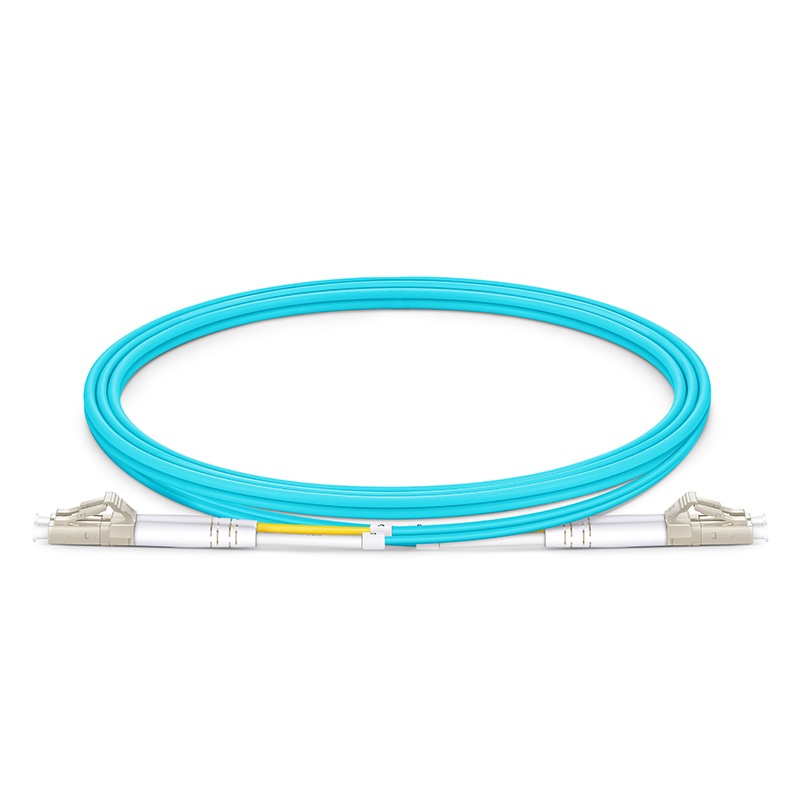

1m (3ft) LC UPC to LC UPC Duplex OM4 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable (regular boot)

SKU: OM4LCDX
Availability: In stock
Delivery date: Lead Time 1 - 2 days
1m (3ft) LC UPC to LC UPC Duplex OM4 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable (regular boot)
$9.75
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

1m (3ft) LC UPC to LC UPC Duplex OM4 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable

The 50/125μm OM4 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.

This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10/40/100G Ethernet connections and is the preferred fiber specification for 40/100G applications.

Specifications

Connector Type
LC UPC to LC UPC

Fiber Grade
Bend Insensitive

Fiber Mode
OM4 50/125μm

Wavelength
850/1300nm

40G Ethernet Distance
150m at 850nm
100G Ethernet Distance
100m at 850nm

Insertion Loss
≤0.3dB

Return Loss
≥30dB

Min. Bend Radius
(Fiber Core)
7.5mm

Min. Bend Radius
(Fiber Cable)
20/10D (Dynamic/Static)

Attenuation at 850nm
3.0dB/km

Attenuation at 1300nm
1.0dB/km

Fiber Count
Duplex

Cable Diameter
2.0mm

Cable Jacket
PVC

Polarity
A (Tx) to B (Rx)

Operating Temperature
-20 to 70°C (-4 to 158℉)

Storage Temperature
-40 to 80℃ (-40 to 176℉)

1m (3ft) LC UPC to LC UPC Duplex OM4 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable

The 50/125μm OM4 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.

This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10/40/100G Ethernet connections and is the preferred fiber specification for 40/100G applications.

Specifications

Connector Type
LC UPC to LC UPC

Fiber Grade
Bend Insensitive

Fiber Mode
OM4 50/125μm

Wavelength
850/1300nm

40G Ethernet Distance
150m at 850nm
100G Ethernet Distance
100m at 850nm

Insertion Loss
≤0.3dB

Return Loss
≥30dB

Min. Bend Radius
(Fiber Core)
7.5mm

Min. Bend Radius
(Fiber Cable)
20/10D (Dynamic/Static)

Attenuation at 850nm
3.0dB/km

Attenuation at 1300nm
1.0dB/km

Fiber Count
Duplex

Cable Diameter
2.0mm

Cable Jacket
PVC

Polarity
A (Tx) to B (Rx)

Operating Temperature
-20 to 70°C (-4 to 158℉)

Storage Temperature
-40 to 80℃ (-40 to 176℉)
