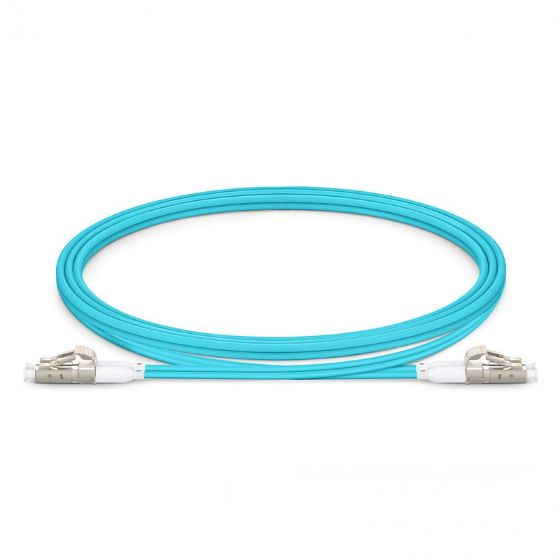

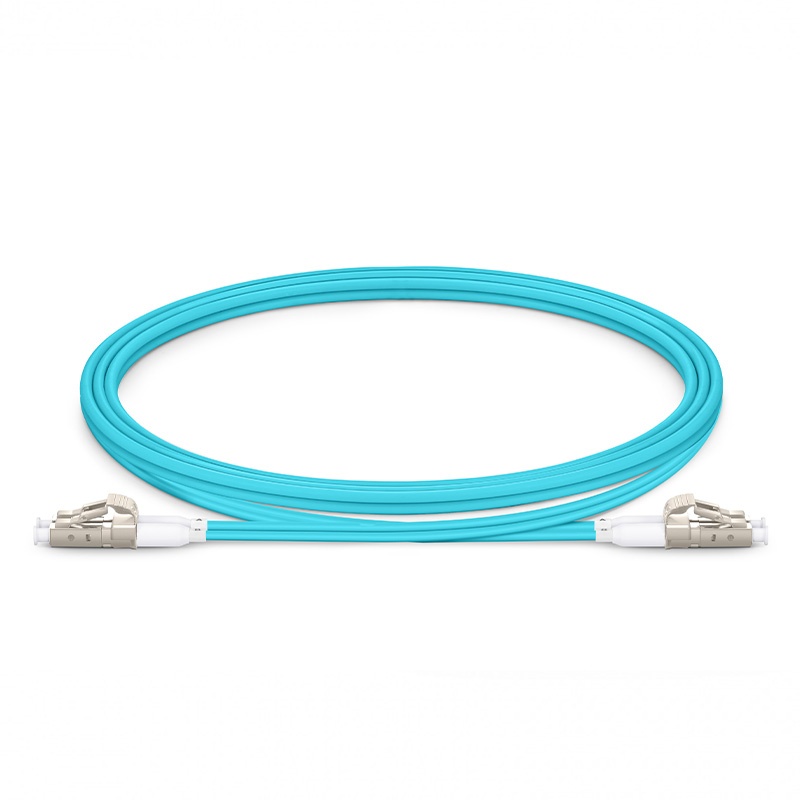

1m (3ft) LC UPC to LC UPC Short Boot Duplex OM4 Multimode

SKU: OM4LCSDX
Availability: In stock
Delivery date: Lead Time 1 - 2 days
1m (3ft) LC UPC to LC UPC Short Boot Duplex OM4 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable
$13.45
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

High Quality and Cost-effective 50/125μm OM4 Multimode LC Short Boot Fiber Optic Cable

The short boot structure is particularly for high density applications with tight space requirements. When used with bend insensitive fiber, the attenuation during bending or twisting can be reduced and this will make the installation and maintenance of the fiber optic cables more efficient. Therefore, it can be used in central offices, passive optical networks (PON), FTTx, data centers, and any places fiber patch cables are needed.

This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.

Specifications

Connector Type
LC UPC to LC UPC

Boot Type
12mm Short Boot

Fiber Count
Duplex

Fiber Mode
OM4 50/125μm

Cable Jacket
PVC

Cable Diameter
2.0mm

Insertion Loss
≤0.3dB

Return Loss
≥30dB

Wavelength
850/1300nm

10G Ethernet Distance
300m at 850nm

Attenuation at 850nm
3.0 dB/km

Attenuation at 1300nm
1.0 dB/km

Min. Bend Radius
(Fiber Core)
7.5mm

Min. Bend Radius
(Fiber Cable)
20/10D (Dynamic/Static)

Tensile Strength
(Long Term/Short Term)
90N/150N

Polarity
A (Tx) to B (Rx)

Operating Temperature
-20~70°C

Storage Temperature
-40~80°C

High Quality and Cost-effective 50/125μm OM4 Multimode LC Short Boot Fiber Optic Cable

The short boot structure is particularly for high density applications with tight space requirements. When used with bend insensitive fiber, the attenuation during bending or twisting can be reduced and this will make the installation and maintenance of the fiber optic cables more efficient. Therefore, it can be used in central offices, passive optical networks (PON), FTTx, data centers, and any places fiber patch cables are needed.

This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.

Specifications

Connector Type
LC UPC to LC UPC

Boot Type
12mm Short Boot

Fiber Count
Duplex

Fiber Mode
OM4 50/125μm

Cable Jacket
PVC

Cable Diameter
2.0mm

Insertion Loss
≤0.3dB

Return Loss
≥30dB

Wavelength
850/1300nm

10G Ethernet Distance
300m at 850nm

Attenuation at 850nm
3.0 dB/km

Attenuation at 1300nm
1.0 dB/km

Min. Bend Radius
(Fiber Core)
7.5mm

Min. Bend Radius
(Fiber Cable)
20/10D (Dynamic/Static)

Tensile Strength
(Long Term/Short Term)
90N/150N

Polarity
A (Tx) to B (Rx)

Operating Temperature
-20~70°C

Storage Temperature
-40~80°C
