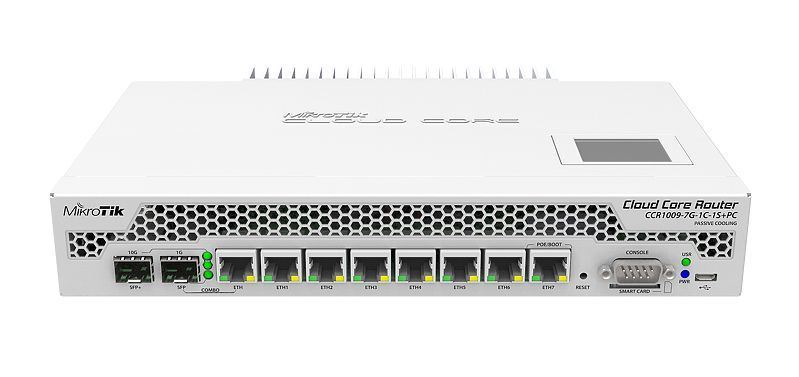

MikroTik CCR1009-7G-1C-1S+PC Cloud Core Router

SKU: CCR1009-7G-1C-1S+PC
Delivery date: Lead Time 3 - 5 days
Manufacturer: MikroTik
7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 1xSFP+ cage, 9 cores x 1GHz CPU, 2GB RAM, LCD panel, passive cooling desktop enclosure, SmartCard slot, RouterOS L6, PSU
$587.60
$687.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.

Important changes

No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.

Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.

100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.

More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.

This unit is equipped with passive cooling enclosure, two heat-pipes and a specially designed heat-sink, so its completely silent. It’s powered by an external 24V 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.

Unit also includes a LCD touchscreen, smart card slot, microSD and a SFP+ port for 10G connections.

Specifications

Details
Product code CCR1009-7G-1C-1S+PC
Architecture TILE
CPU TLR4-00980
CPU core count
CPU nominal frequency 1 GHz
Dimensions 272x190x47mm
License level
Operating System RouterOS
Size of RAM 2 GB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -20°C to 60°C

Powering

Details
PoE in Passive PoE
PoE in input Voltage 18-57 V
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 18-57 V
Max power consumption 38 W
Max power consumption without attachments 33 W

Ethernet

Details
10/100/1000 Ethernet ports
Ethernet Combo ports

Fiber

Details
SFP+ ports 1

Peripherals

Details
Number of SIM slots 1 Smart card (Mini SIM)
Memory card type microSD
Memory Cards
Serial port RS232
Number of USB ports
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1

Other

Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE/RED, EAC, ROHS

The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.

Important changes

No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.

Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.

100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.

More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.

This unit is equipped with passive cooling enclosure, two heat-pipes and a specially designed heat-sink, so its completely silent. It’s powered by an external 24V 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.

Unit also includes a LCD touchscreen, smart card slot, microSD and a SFP+ port for 10G connections.

Specifications

Details
Product code CCR1009-7G-1C-1S+PC
Architecture TILE
CPU TLR4-00980
CPU core count
CPU nominal frequency 1 GHz
Dimensions 272x190x47mm
License level
Operating System RouterOS
Size of RAM 2 GB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -20°C to 60°C

Powering

Details
PoE in Passive PoE
PoE in input Voltage 18-57 V
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 18-57 V
Max power consumption 38 W
Max power consumption without attachments 33 W

Ethernet

Details
10/100/1000 Ethernet ports
Ethernet Combo ports

Fiber

Details
SFP+ ports 1

Peripherals

Details
Number of SIM slots 1 Smart card (Mini SIM)
Memory card type microSD
Memory Cards
Serial port RS232
Number of USB ports
USB Power Reset Yes
USB slot type microUSB type AB
Max USB current (A) 1

Other

Details
CPU temperature monitor Yes
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes

Certification & Approvals

Details
Certification CE/RED, EAC, ROHS
