MikroTik CCR1016-12G Cloud Core Router

Be the first to review this product
SKU: CCR1016-12G
Delivery date: Lead Time 3 - 5 days
Manufacturer: MikroTik
1U rackmount, 12x Gigabit Ethernet, LCD, 16 cores x 1.2GHz CPU, 2GB RAM, 17.8mpps fastpath, Up to 12Gbit/s throughput, RouterOS L6, Dual PSU
$764.55
$899.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

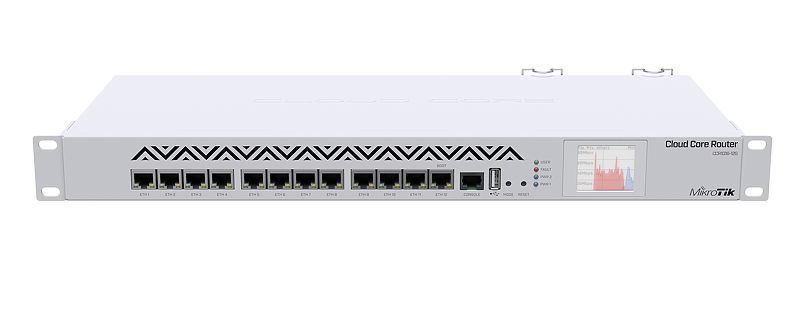

CCR1016-12G is an industrial grade router with a cutting edge 16 core CPU. If you need many millions of packets per second - Cloud Core Router is your best choice. Unit is equipped with 12 x Gigabit Ethernet ports and color touchscreen LCD.

The new r2 version has onboard 2GB of RAM, full size USB slot and dual PSU for redundancy!

Specifications

Details
Product code CCR1016-12G
Architecture TILE
CPU TLR4-01680
CPU core count 16
CPU nominal frequency 1.2 GHz
Dimensions 355x145x44mm
License level 6
Operating System RouterOS
Size of RAM 2 GB
Storage size 512 MB
Storage type NAND
Tested ambient temperature -20°C to 60°C

Powering

Details
Number of AC inputs 2
AC input range 100-240
Max power consumption 42 W
Max power consumption without attachments 37 W

Ethernet

Details
10/100/1000 Ethernet ports 12

Peripherals

Details
Serial port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Mode button Yes

Certification & Approvals

Details
Certification CE/RED, EAC, ROHS

CCR1016-12G is an industrial grade router with a cutting edge 16 core CPU. If you need many millions of packets per second - Cloud Core Router is your best choice. Unit is equipped with 12 x Gigabit Ethernet ports and color touchscreen LCD.

The new r2 version has onboard 2GB of RAM, full size USB slot and dual PSU for redundancy!
