MikroTik CCR1036-12G-4S-EM

SKU: CCR1036-12G-4S-EM
Delivery date: Lead Time 3 - 5 days
Manufacturer: MikroTik
1U rackmount, 12x Gigabit Ethernet, 4xSFP cages, LCD, 36 cores x 1.2GHz CPU, 8GB RAM, 24 mpps fastpath, Up to 16Gbit/s throughput, RouterOS L6, Dual PSU
$1,398.77
$1,644.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

CCR1036-12G-4S is an industrial grade router with cutting edge 36 core CPU. If you need many millions of packets per second - Cloud Core Router with 36 cores is your best choice.

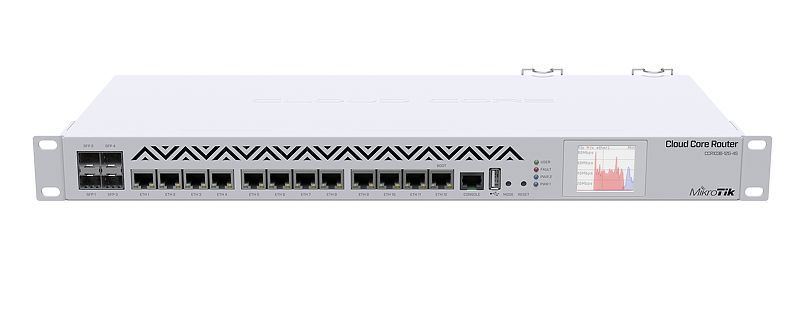

The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port.

The new r2 version has onboard 8GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!

Specifications

Details
Product code CCR1036-12G-4S-EM
Architecture TILE
CPU TLR4-03680
CPU core count 36
CPU nominal frequency 1.2 GHz
Dimensions 355x145x44mm
License level
Operating System RouterOS
Size of RAM 8 GB
Storage size 1 GB
Storage type NAND
Tested ambient temperature -20°C to 60°C

Powering

Details
Number of AC inputs
AC input range 100-240
Max power consumption 60 W

Ethernet

Details
10/100/1000 Ethernet ports 12

Fiber

Details
SFP DDMI Yes
SFP ports 4

Peripherals

Details
Serial port RJ45
Number of USB ports
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Mode button Yes

Certification & Approvals

Details
Certification CE/RED, EAC, ROHS

CCR1036-12G-4S is an industrial grade router with cutting edge 36 core CPU. If you need many millions of packets per second - Cloud Core Router with 36 cores is your best choice.

The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, a serial console cable and a USB port.

The new r2 version has onboard 8GB of RAM, onboard M.2 slot, full size USB slot and dual PSU for redundancy!

Specifications

Details
Product code CCR1036-12G-4S-EM
Architecture TILE
CPU TLR4-03680
CPU core count 36
CPU nominal frequency 1.2 GHz
Dimensions 355x145x44mm
License level
Operating System RouterOS
Size of RAM 8 GB
Storage size 1 GB
Storage type NAND
Tested ambient temperature -20°C to 60°C

Powering

Details
Number of AC inputs
AC input range 100-240
Max power consumption 60 W

Ethernet

Details
10/100/1000 Ethernet ports 12

Fiber

Details
SFP DDMI Yes
SFP ports 4

Peripherals

Details
Serial port RJ45
Number of USB ports
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1

Other

Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Mode button Yes

Certification & Approvals

Details
Certification CE/RED, EAC, ROHS
