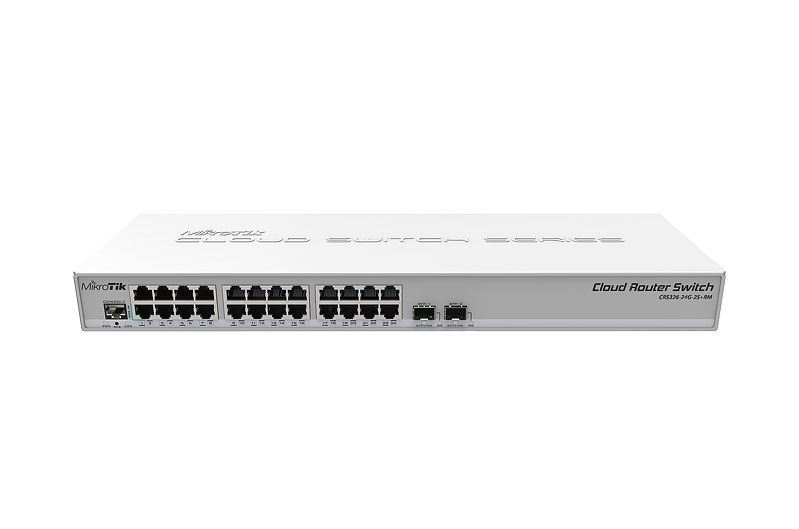

MikroTik CRS326-24G-2S+RM

SKU: CRS326-24G-2S+RM
Delivery date: Lead Time 3 - 5 days
Manufacturer: MikroTik
24 Gigabit port switch with 2 x SFP+ cages in 1U rackmount case, Dual boot (RouterOS or SwitchOS)
$235.85
$309.75
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!

It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.

It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.

Specifications

Details
Product code CRS326-24G-2S+RM
Architecture ARM 32bit
CPU 98DX3236
CPU core count
CPU nominal frequency 800 MHz
Dimensions 443 x 144 x 44 mm
License level
Operating System RouterOS / SwitchOS
Size of RAM 512 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 60°C

Powering

Details
PoE in Passive PoE
PoE in input Voltage 10-30 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-30 V
Max power consumption 24 W

Ethernet

Details
10/100/1000 Ethernet ports 24

Fiber

Details
SFP+ ports 2

Peripherals

Details
Serial port RJ45

Certification & Approvals

Details
Certification CE/RED, EAC, ROHS



SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!

It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.

It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.

Specifications

Details
Product code CRS326-24G-2S+RM
Architecture ARM 32bit
CPU 98DX3236
CPU core count
CPU nominal frequency 800 MHz
Dimensions 443 x 144 x 44 mm
License level
Operating System RouterOS / SwitchOS
Size of RAM 512 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40°C to 60°C

Powering

Details
PoE in Passive PoE
PoE in input Voltage 10-30 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-30 V
Max power consumption 24 W

Ethernet

Details
10/100/1000 Ethernet ports 24

Fiber

Details
SFP+ ports 2

Peripherals

Details
Serial port RJ45

Certification & Approvals

Details
Certification CE/RED, EAC, ROHS
