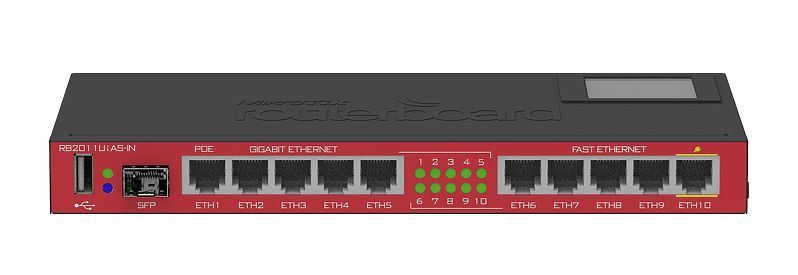

MikroTik RB2011UiAS-IN

SKU: RB2011UiAS-IN
Delivery date: Lead Time 3 - 5 days
Manufacturer: MikroTik
Desktop metal case, 5xEthernet, 5xGigabit Ethernet, USB, LCD, PoE out on port 10, 600MHz CPU, 128MB RAM, RouterOS L5
$152.45
$189.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

RouterBOARD 2011UiAS-IN, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, USB port and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

RouterBOARD 2011UiAS-IN comes with desktop enclosure, LCD panel and power supply.

Wall mount kit (product code RBWMK) for network closet is available for purchase as an optional accessory.

Specifications

Details
Product code RB2011UiAS-IN
Architecture MIPSBE
CPU AR9344
CPU core count
CPU nominal frequency 600 MHz
Dimensions 214mm x 86mm for PCB
License level
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 60°C

Powering

Details
PoE in Passive PoE
PoE in input Voltage 8-30 V
PoE out Passive PoE
PoE-out ports Ether10
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max out per port output (input < 30 V) 510 mA
Max total out (A) 510 mA
Max power consumption 6 W

Ethernet

Details
10/100 Ethernet ports
10/100/1000 Ethernet ports

Fiber

Details
SFP DDMI Yes
SFP ports

Peripherals

Details
Serial port RJ45
Number of USB ports
USB Power Reset Yes
USB slot type USB type A
Max USB current (A)

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

RouterBOARD 2011UiAS-IN, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, USB port and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

RouterBOARD 2011UiAS-IN comes with desktop enclosure, LCD panel and power supply.

Wall mount kit (product code RBWMK) for network closet is available for purchase as an optional accessory.

Specifications

Details
Product code RB2011UiAS-IN
Architecture MIPSBE
CPU AR9344
CPU core count
CPU nominal frequency 600 MHz
Dimensions 214mm x 86mm for PCB
License level
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 60°C

Powering

Details
PoE in Passive PoE
PoE in input Voltage 8-30 V
PoE out Passive PoE
PoE-out ports Ether10
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max out per port output (input < 30 V) 510 mA
Max total out (A) 510 mA
Max power consumption 6 W

Ethernet

Details
10/100 Ethernet ports
10/100/1000 Ethernet ports

Fiber

Details
SFP DDMI Yes
SFP ports

Peripherals

Details
Serial port RJ45
Number of USB ports
USB Power Reset Yes
USB slot type USB type A
Max USB current (A)

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
