Mikrotik RB750P-PBr2 PowerBox
SKU:
RB750P-PBr2
Delivery date: Out of Stock
650MHz CPU, 64MB RAM, 5xEthernet with PoE output for four ports, RouterOS L4, outdoor case, PSU
$97.65
$112.00

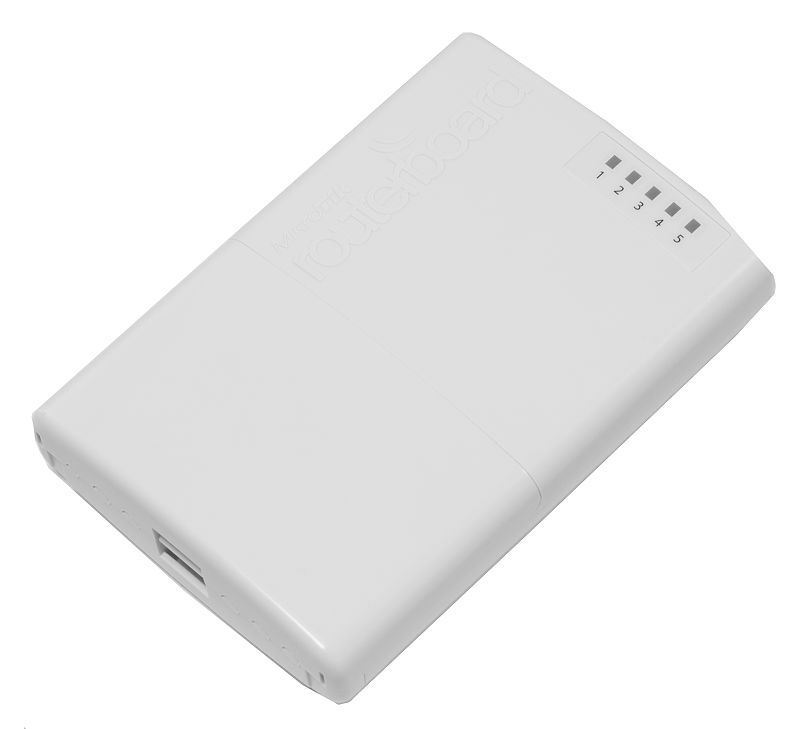

The PowerBox is an outdoor five Ethernet port router with PoE output on four ports. You can use this device to supply power to four PoE capable devices such as our SXT or others.
Since the device has a waterproof outdoor case, you can mount it on a tower, or in other outdoor locations.
The unit has five shielded Ethernet ports, four of which can power other PoE capable devices with the same voltage as applied to the unit (max current out is 1A per port, max total out is 2A). Less power adapters and cables to worry about!
Specifications
| Details |
| Product code |
RB750P-PBr2 |
| Architecture |
MIPSBE |
| CPU |
QCA9533 |
| CPU core count |
1 |
| CPU nominal frequency |
650 MHz |
| Dimensions |
125x178x48mm |
| License level |
4 |
| Operating System |
RouterOS |
| Size of RAM |
64 MB |
| Storage size |
16 MB |
| Storage type |
FLASH |
| Tested ambient temperature |
-40°C to 70°C |
Powering
| Details |
| PoE in |
Passive PoE |
| PoE in input Voltage |
8-30 V |
| PoE out |
Passive PoE |
| PoE-out ports |
Ether2-Ether5 |
| Number of DC inputs |
2 (PoE-IN, DC jack) |
| DC jack input Voltage |
8-30 V |
| Max out per port output (input < 30 V) |
1 A |
| Max total out (A) |
2 A |
| Max power consumption |
50 W |
| Max power consumption without attachments |
2 W |
Ethernet
| Details |
| 10/100 Ethernet ports |
5 |
Other
| Details |
| Current Monitor |
Yes |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
