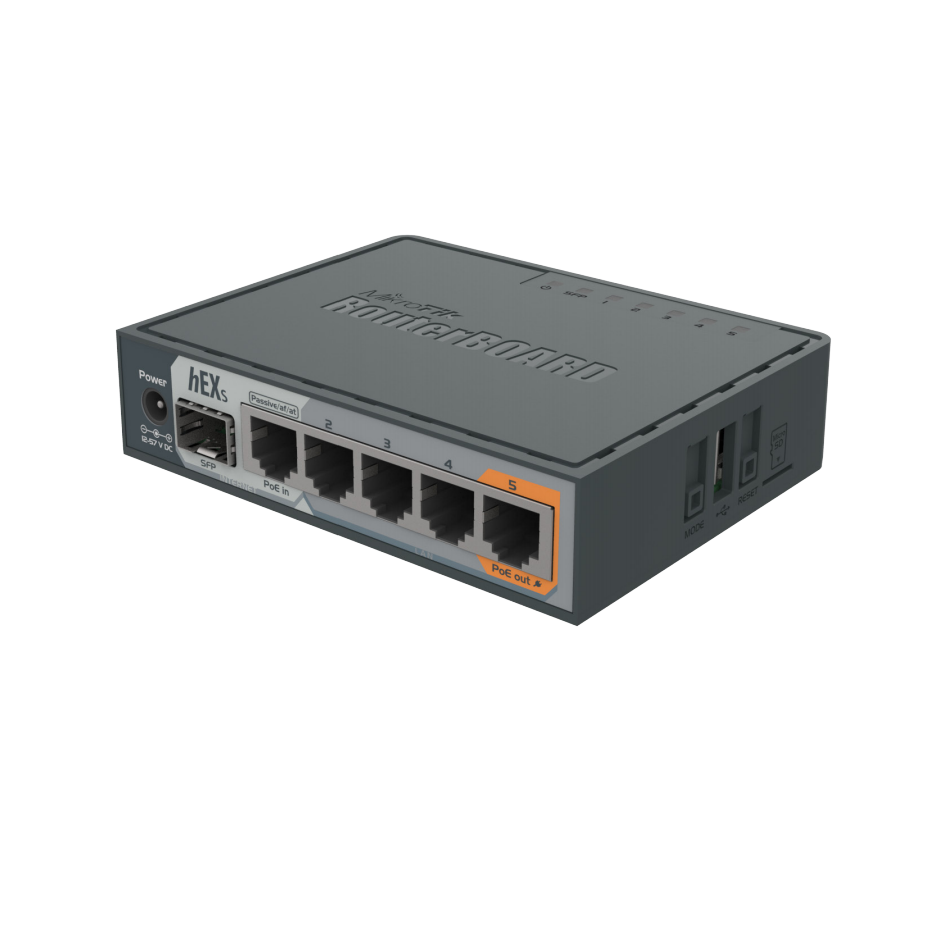

MikroTik RB760iGS hEX S

SKU: RB760iGS
Availability: In stock
Delivery date: Lead Time 3 - 5 days
Manufacturer: MikroTik
MikroTik RouterBOARD RB760iGS, 5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4
$109.00
$99.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

MikroTik RouterBOARD RB760iGS

5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4

The hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.

It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.

IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.



Specifications RB760iGS

Product code hEX S
CPU MT7621A
CPU nominal frequency 880 MHz
CPU core count 2
CPU threads 4
Size of RAM 256 MB
10/100/1000 Ethernet ports 5
SFP cages 1
PoE in Passive, 802.3af/at
PoE out Passive PoE up to 57 V (Ether5)
Supported input voltage DC and PoE in: 12 - 57 V
Power output Max out per port output (input < 30 V): 500 mA Max out per port output (input > 30 V): 500 mA Max total out: 500 mA
PCB temperature monitor Yes
Voltage monitor Yes
USB slot USB type A
MicroSD slot 1
Operating temperature -40°C to +70°C
Dimensions 113 x 89 x 28 mm
License level 4
Operating System RouterOS
Max Power consumption 11 W



MikroTik RouterBOARD RB760iGS

5x Gigabit Ethernet, SFP, Dual Core 880MHz CPU, 256MB RAM, USB, microSD, RouterOS L4

The hEX S is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. Compared to the hEX, the hEX S also features an SFP port and PoE output on the last port.

It is affordable, small and easy to use, but at the same time comes with a very powerful dual core 880 MHz CPU and 256 MB RAM, capable of all the advanced configurations that RouterOS supports. The device has a USB 2.0, PoE output for Ethernet port #5 and a 1.25Gbit/s SFP cage.

IPsec hardware encryption (~470 Mbps) and The Dude server package is supported, microSD slot on it provides improved r/w speed for file storage and Dude.



Specifications RB760iGS

Product code hEX S
CPU MT7621A
CPU nominal frequency 880 MHz
CPU core count 2
CPU threads 4
Size of RAM 256 MB
10/100/1000 Ethernet ports 5
SFP cages 1
PoE in Passive, 802.3af/at
PoE out Passive PoE up to 57 V (Ether5)
Supported input voltage DC and PoE in: 12 - 57 V
Power output Max out per port output (input < 30 V): 500 mA Max out per port output (input > 30 V): 500 mA Max total out: 500 mA
PCB temperature monitor Yes
Voltage monitor Yes
USB slot USB type A
MicroSD slot 1
Operating temperature -40°C to +70°C
Dimensions 113 x 89 x 28 mm
License level 4
Operating System RouterOS
Max Power consumption 11 W
