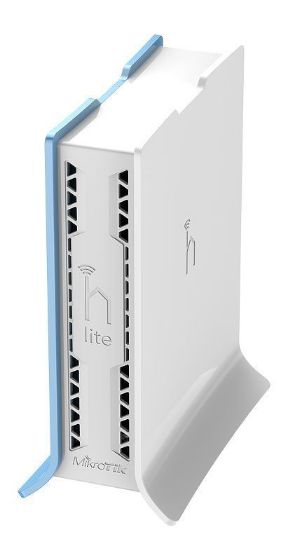

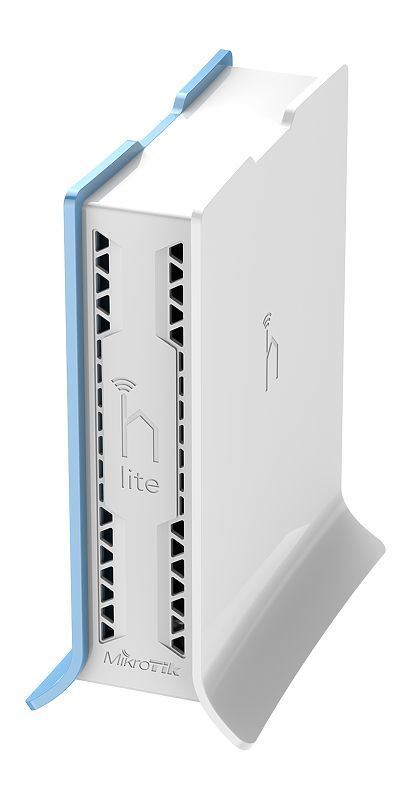

The home Access Point lite (hAP lite) is an ideal little device for your apartment, house or office.
It supports button triggered WPS, for the convenience of not typing a complicated password when somebody wants to have wireless internet access, and can also be told to change to cAP mode and join a CAPsMAN centrally managed network by the push of a button.
Of course, the device runs RouterOS with all the features, bandwidth shaping, firewall, user access control and many others.
The hAP lite is equipped with a powerful 650MHz CPU, 32MB RAM, dual chain 2.4GHz onboard wireless, four Fast Ethernet ports and a RouterOS L4 license. USB power supply is included.
Specifications
Details |
Product code |
RB941-2nD-TC |
Architecture |
SMIPS |
CPU |
QCA9533 |
CPU core count |
1 |
CPU nominal frequency |
650 MHz |
License level |
4 |
Operating System |
RouterOS |
Size of RAM |
32 MB |
Storage size |
16 MB |
Storage type |
FLASH |
Tested ambient temperature |
-20°C to 70°C |
Powering
Details |
MicroUSB input Voltage |
5-5 V |
Number of DC inputs |
1 (MicroUSB) |
Max power consumption |
3.5 W |
Wireless
Details |
Wireless 2.4 GHz Max data rate |
300 Mbit/s |
Wireless 2.4 GHz number of chains |
2 |
Wireless 2.4 GHz standards |
802.11b/g/n |
Antenna gain dBi for 2.4 GHz |
1.5 |
Wireless 2.4 GHz chip model |
QCA9533 |
Wireless 2.4 GHz generation |
Wi-Fi 4 |
Ethernet
Details |
10/100 Ethernet ports |
4 |
Wireless specifications
2.4 GHz |
Transmit (dBm) |
Receive Sensitivity |
1MBit/s |
22 |
-96 |
11MBit/s |
22 |
-89 |
6MBit/s |
20 |
-93 |
54MBit/s |
18 |
-74 |
MCS0 |
20 |
-93 |
MCS7 |
16 |
-71 |
