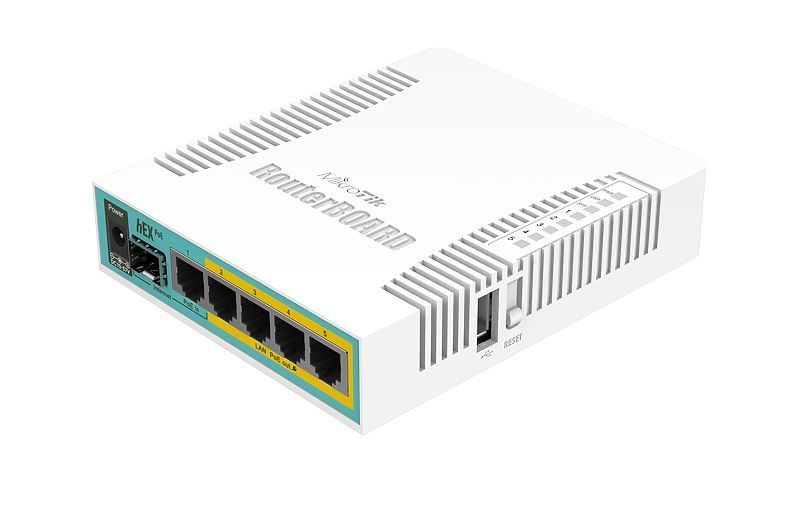

MikroTik RB960PGS hEX PoE Gigabit Router
SKU:
RB960PGS
Availability: Out of stock
Delivery date: Lead Time 3 - 5 days
5x Gigabit Ethernet with PoE output for four ports, SFP, USB, 800MHz CPU, 128MB RAM, RouterOS L4
hEX PoE is a five port Gigabit Ethernet router for locations where wireless connectivity is not required. The device has a USB 2.0 port and a SFP port for adding optical fiber connectivity. The ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit.
It is affordable, small and easy to use, but at the same time comes with a very powerful 800MHz CPU, capable of all the advanced configurations that RouterOS supports. Less power adapters and cables to worry about! Max current is 1A per port, Ethernet ports are shielded.
It also supports passive PoE input and passive or 802.3af/at PoE output. Ethernet ports 2-5 can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! It can power at/af mode B (4,5+)(7,8-) compatible devices, if 48-57 input voltage is used.
Specifications
Details |
Product code |
RB960PGS |
Architecture |
MIPSBE |
CPU |
QCA9557 |
CPU core count |
1 |
CPU nominal frequency |
800 MHz |
License level |
4 |
Operating System |
RouterOS |
Size of RAM |
128 MB |
Storage size |
16 MB |
Storage type |
FLASH |
Tested ambient temperature |
-40°C to 60°C |
Powering
Details |
PoE in |
Passive PoE |
PoE in input Voltage |
12-57 V |
PoE out |
802.3af/at |
PoE-out ports |
Ether2-Ether5 |
Number of DC inputs |
2 (PoE-IN, DC jack) |
DC jack input Voltage |
12-57 V |
Max out per port output (input > 30 V) |
450 mA |
Max out per port output (input < 30 V) |
1 A |
Max total out (A) |
2 A |
Max power consumption |
54 W |
Max power consumption without attachments |
6 W |
Ethernet
Details |
10/100/1000 Ethernet ports |
5 |
Fiber
Peripherals
Details |
Number of USB ports |
1 |
USB Power Reset |
Yes |
USB slot type |
USB type A |
Max USB current (A) |
1 |
Other
Details |
PCB temperature monitor |
Yes |
Voltage Monitor |
Yes |
