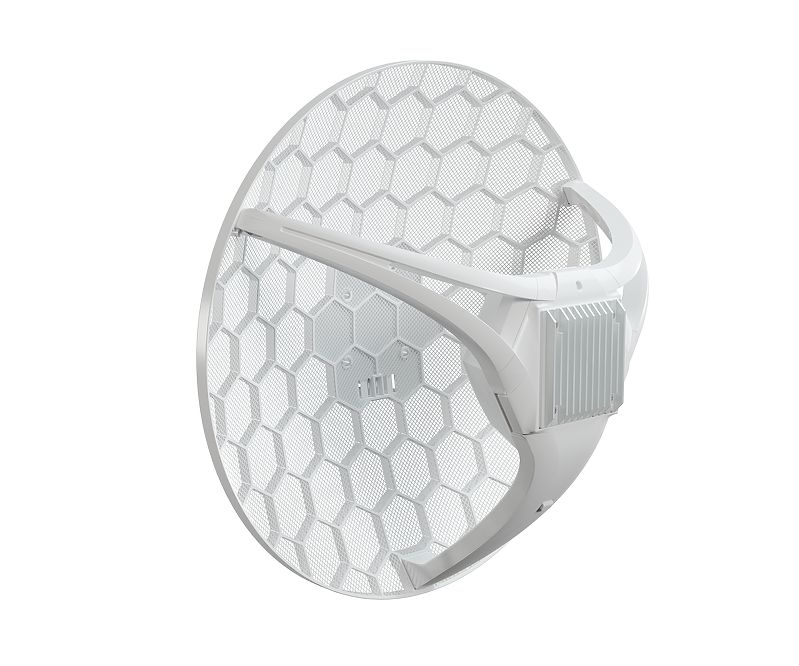

Mikrotik RBLHGGR&R11e-LTE6 kit

SKU: RBLHGGR&R11e-LTE6
Delivery date: Lead Time 3 - 5 days
Manufacturer: MikroTik
Mikrotik RBLHGGR&R11e-LTE6 kit. LHG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.
$274.00
$289.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Do you want high-speed Internet in the middle of nowhere? Then you want our newest LHGG LTE6 kit! It is a device for “last mile” Internet access in very remote locations. Mount it outdoors, on a pole, mast, or any tall structure, and connect even where cell phones fail. Due to its large high-gain 17 dBi antenna, the LHGG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

The LHGG LTE6 kit features a 300 Mbps CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. That is a huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.

This device features a Gigabit Ethernet port with PoE-in for powering the device from the Ethernet port. The grid antenna design can withstand harsh, windy weather and can be mounted in different ways. There is a massive heat sink, so you don’t have to worry about overheating. With this device, you can really focus on the important stuff while the tech simply works in the background.



Specifications



Details
Product code RBLHGGR&R11e-LTE6
Architecture ARM 64bit
CPU 88F3720
CPU core count 2
CPU nominal frequency 800 MHz
Dimensions 391 x 391 x 237 mm
RouterOS license 3
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -30°C to 70°C
Suggested price $199.00



Powering



Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 8 W
Max power consumption without attachments 8 W
FAN count Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V



Mobile



Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)



Ethernet



Details
10/100/1000 Ethernet ports 1



Peripherals



Details
Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1



Other



Details
Mode button Yes



Certification & Approvals



Details
Certification CE, EAC, ROHS
IP IP 54
Product Files
Technical Info
Video Presentation

Do you want high-speed Internet in the middle of nowhere? Then you want our newest LHGG LTE6 kit! It is a device for “last mile” Internet access in very remote locations. Mount it outdoors, on a pole, mast, or any tall structure, and connect even where cell phones fail. Due to its large high-gain 17 dBi antenna, the LHGG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

The LHGG LTE6 kit features a 300 Mbps CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. That is a huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.

This device features a Gigabit Ethernet port with PoE-in for powering the device from the Ethernet port. The grid antenna design can withstand harsh, windy weather and can be mounted in different ways. There is a massive heat sink, so you don’t have to worry about overheating. With this device, you can really focus on the important stuff while the tech simply works in the background.



Specifications



Details
Product code RBLHGGR&R11e-LTE6
Architecture ARM 64bit
CPU 88F3720
CPU core count 2
CPU nominal frequency 800 MHz
Dimensions 391 x 391 x 237 mm
RouterOS license 3
Operating System RouterOS
Size of RAM 256 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -30°C to 70°C
Suggested price $199.00



Powering



Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 8 W
Max power consumption without attachments 8 W
FAN count Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V



Mobile



Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)



Ethernet



Details
10/100/1000 Ethernet ports 1



Peripherals



Details
Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1



Other



Details
Mode button Yes



Certification & Approvals



Details
Certification CE, EAC, ROHS
IP IP 54
