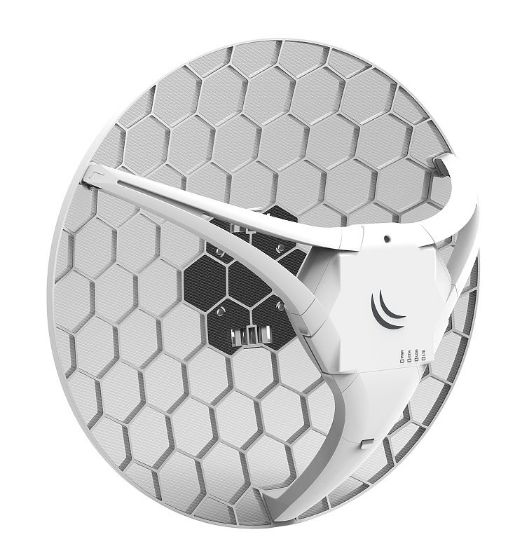

Mikrotik RBLHGR&R11e-LTE6 kit

SKU: RBLHGR&R11e-LTE6
Delivery date: Lead Time 3 - 5 days
Manufacturer: MikroTik
Mikrotik RBLHGR&R11e-LTE6 kit. LHG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.
$239.00
$259.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The LHG LTE6 kit is a device for very remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any tall structure, and connect even where cell phones fail. Due to its large sized high gain antenna, LHG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

The new LHG LTE6 kit features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.



Specifications

Details
Product code RBLHGR&R11e-LTE6
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
RouterOS license 3
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -30°C to 60°C
Suggested price $179.00


Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 6 W
FAN count Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V


Mobile

Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)


Ethernet

Details
10/100 Ethernet ports 1


Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1


Other

Details
Mode button Yes


Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP54



Ethernet test results

RBLHGR&R11e-LTE6 QCA9531 100M one port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 8.1 98.4 23.5 96.3 173.6 88.9
Bridging 25 bridge filter rules 8.1 98.4 23.5 96.3 70.9 36.3
Routing none (fast path) 8.1 98.4 23.5 96.3 160.8 82.3
Routing 25 simple queues 8.1 98.4 23.5 96.3 90.8 46.5
Routing 25 ip filter rules 8.1 98.4 23.5 96.3 43.2 22.1

The LHG LTE6 kit is a device for very remote locations that are within cellular network coverage. Mount it outdoors, on a pole, mast or any tall structure, and connect even where cell phones fail. Due to its large sized high gain antenna, LHG LTE6 kit can connect to cell towers in extreme rural locations, giving you the ability to provide last mile internet access where nothing else is available.

The new LHG LTE6 kit features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. A huge advantage when there are a lot of LTE users in the area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside. We have seen Internet speed doubling in rural areas after switching to CAT6, so there is no need to wait for cable network expansions.



Specifications

Details
Product code RBLHGR&R11e-LTE6
Architecture MIPSBE
CPU QCA9531
CPU core count 1
CPU nominal frequency 650 MHz
RouterOS license 3
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -30°C to 60°C
Suggested price $179.00


Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 6 W
FAN count Passive
PoE in 802.3af/at
PoE in input Voltage 12-57 V


Mobile

Details
2G Category Class12
2G bands 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
3G Category R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
LTE FDD bands 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
LTE TDD bands 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz)


Ethernet

Details
10/100 Ethernet ports 1


Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
MiniPCI-e slots 1


Other

Details
Mode button Yes


Certification & Approvals

Details
Certification CE, EAC, ROHS
IP IP54



Ethernet test results

RBLHGR&R11e-LTE6 QCA9531 100M one port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 8.1 98.4 23.5 96.3 173.6 88.9
Bridging 25 bridge filter rules 8.1 98.4 23.5 96.3 70.9 36.3
Routing none (fast path) 8.1 98.4 23.5 96.3 160.8 82.3
Routing 25 simple queues 8.1 98.4 23.5 96.3 90.8 46.5
Routing 25 ip filter rules 8.1 98.4 23.5 96.3 43.2 22.1
