Mikrotik RB4011iGS+5HacQ2HnD-IN Router
SKU: RB4011iGS+5HacQ2HnD-IN
Availability: Out of stock
Delivery date: Lead Time 3 - 5 days

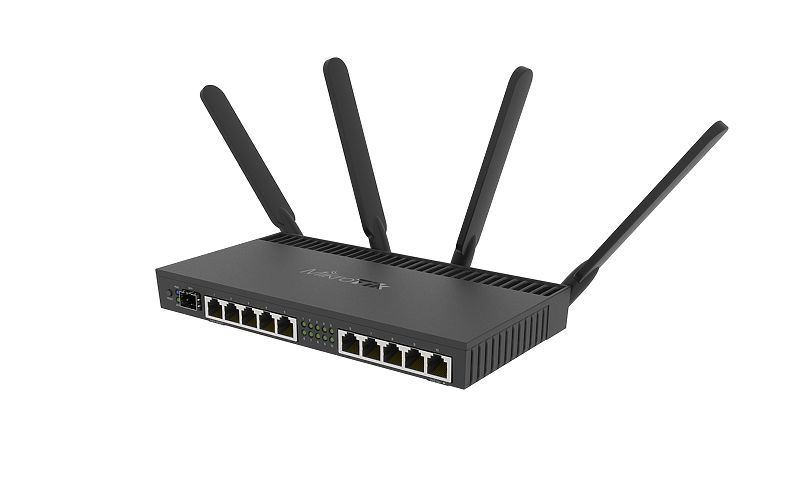

Powerful 10xGigabit port router with a Quad-core 1.4Ghz CPU, 1GB RAM, SFP 10Gbps cage, dual band 2.4GHz / 5GHz 4x4 MIMO 802.11a/b/g/n/ac wireless and desktop case
RB4011 series - amazingly powerful routers with ten Gigabit ports, SFP+ 10Gbps interface and IPsec hardware acceleration for a great price!
The RB4011 uses a quad core Cortex A15 CPU, same as in our carrier grade RB1100AHx4 unit. The unit is equipped with 1GB of RAM, can provide PoE output on port #10 and comes with a compact and professional looking solid metal enclosure in matte black.
RB4011iGS+5HacQ2HnD-IN (WiFi model) is dual band, four chain unit with a supported data rate of up to 1733 Mbps in 5GHz. For legacy devices, the unit also has a dual chain 2GHz wireless card installed in miniPCI-e slot.
We have two versions available.
RB4011iGS+5HacQ2HnD-IN-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
RB4011iGS+5HacQ2HnD-IN (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Note: The RB4011 does not support Passive DAC modules and SFP GPON modules.
Specifications
| Details |
|---|
| Product code | RB4011iGS+5HacQ2HnD-IN |
| Architecture | ARM 32bit |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1.4 GHz |
| Dimensions | 228 x 120 x 30 mm |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 1 GB |
| Storage size | 512 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C to 45°C |
Powering
| Details |
|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 18-57 V |
| PoE out | Passive PoE up to 57V |
| PoE-out ports | Ether10 |
| Number of DC inputs | 2 (PoE-IN, DC jack) |
| DC jack input Voltage | 12-57 V |
| Max out per port output (input > 30 V) | 420 mA |
| Max out per port output (input < 30 V) | 600 mA |
| Max total out (A) | 600 mA |
| Max power consumption | 44 W |
| Max power consumption without attachments | 23 W |
Wireless
| Details |
|---|
| AC speed | AC2000 |
| Wireless 5 GHz Max data rate | 1733 Mbit/s |
| Wireless 5 GHz number of chains | 4 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Antenna gain dBi for 5 GHz | 3 |
| Wireless 5 GHz chip model | QCA9984 |
| Wireless 5 GHz generation | Wi-Fi 5 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 3 |
| Wireless 2.4 GHz chip model | R11e-2HnD |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
Ethernet
| Details |
|---|
| 10/100/1000 Ethernet ports | 10 |
Fiber
Peripherals
| Details |
|---|
| MiniPCI-e slots | 1 |
| Serial port | RJ45 |
Other
| Details |
|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Wireless specifications
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 6MBit/s | 33 | -96 |
| 54MBit/s | 29 | -81 |
| MCS0 | 33 | -96 |
| MCS7 | 28 | -77 |
| MCS9 | 26 | -72 |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|
| 1MBit/s | 28 | -100 |
| 11MBit/s | 28 | -94 |
| 6MBit/s | 29 | -96 |
| 54MBit/s | 25 | -80 |
| MCS0 | 26 | -96 |
| MCS7 | 24 | -79 |
