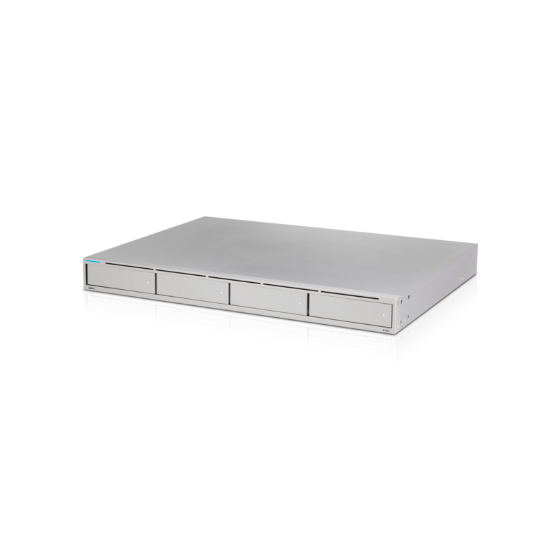

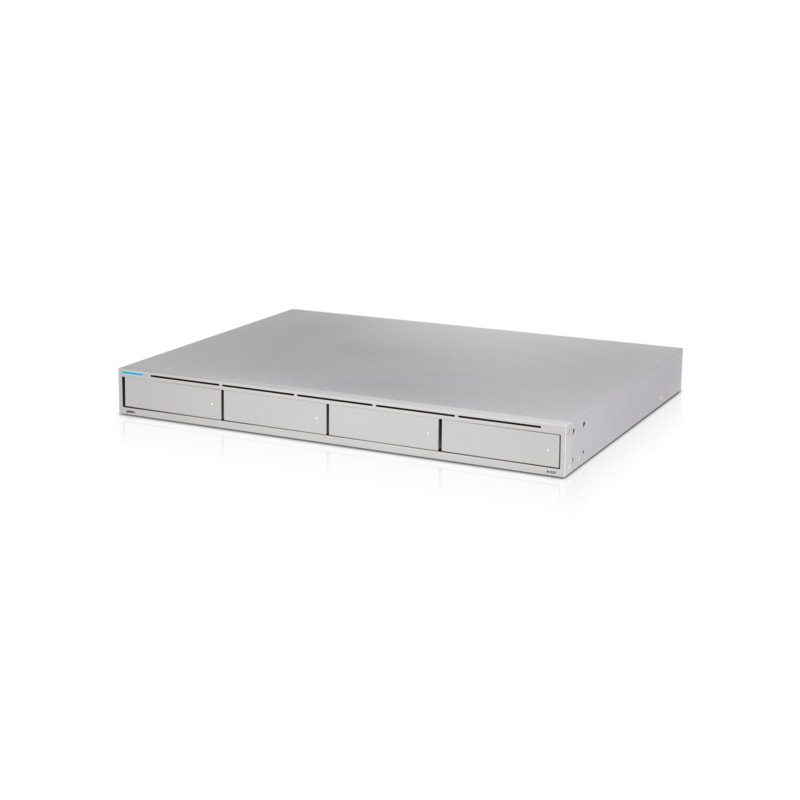

Ubiquiti Network Video Recorder UNVR4

SKU: UNVR
Delivery date: Lead Time 3 - 5 days
Manufacturer: Ubiquiti
The Network Video Recorder (UNVR) is a business-grade network video recorder that provides data redundancy and long-term storage capabilities
$469.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The Network Video Recorder (UNVR) is a business-grade network video recorder that provides data redundancy and long-term storage capabilities (up to 30 days of storage for 15 4K cameras or 50 1080p cameras).

The UNVR is a UniFi OS Console that runs the pre-installed UniFi Protect application and has spacious storage for up to 4 compatible 2.5” or 3.5" HDDs. The powerful, easy-to-use UNVR can be deployed in minutes and support systems with up to 50 cameras. Combining the best features of Cloud and onsite surveillance systems, UniFi Protect gives you centralized, local, low-latency access to all of your live camera feeds and recordings, as well as remote access from anywhere in the world via unifi.ui.com and the Protect mobile app. The UNVR also offers sophisticated data protection and continuity by automatically applying RAID 1 or 5 configuration based on the number of HDDs installed.

Features:

      • (4) 2.5"/3.5" HDD bays
      • (1) 10G SFP+ port
      • (1) GbE RJ45 port
      • 1U-sized, rack-mountable console (kit included)
      • Pre-installed UniFi Protect application
      • Automated RAID 1 or RAID 5 HDD configuration
      • Can be connected to the USP RPS (sold separately) for enhanced power supply failover protection
      • Allows you to easily scale your deployment by connecting additional UniFi devices

Note: Please ensure your HDDs meet Ubiquiti's general guidelines and aren't included in our list of incompatible models.



Simply scalable building video security

The platform designed for multi-camera deployments


4x HDD Bay
2.5”/3.5” Drive Bay

10 Gbps SFP+
10 Gbps SFP+ Port

1 Gbps RJ45
Gigabit RJ45 Port

Plug & Play System
UniFi Protect System with NVR

RAID 1 or RAID 5
Automated secure RAID 1 or RAID 5 configuration

Redundant Power
Redundant Power Support

Store your footage for 30 days

Enterprise network video recorder, can provide up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras

Redundant power support

Proprietary redundant power system designed to protect from sudden power supply module failure. Use USP-RPS* or USW-Mission-Critical**
* Sold separately ** Coming soon

Automized Secure RAID1/5 Configuration

The UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software

4k Cameras
4
HD Cameras
8




Storage for
38 days
Minimum 26 days of continuous motion recording





Know more about your network than ever before

Keep an Eye on Your Property From Any Device From Anywhere









Product Specifications
Mechanical
Dimensions

442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")

Weight

Without Rackmount Brackets: 5.11 kg (11.27 lb)
With Rackmount Brackets: 5.20 kg (11.46 lb)

Enclosure Material

SGCC Steel

Hardware
Processor

Quad-Core ARM® Cortex®-A57 at 1.7 GHz

System Memory

4 GB

On-Board Flash Storage

8 GB

Max. Power Consumption

100W

Max. Power Budget for Drives

75W

Power Method

(1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz

(1) USP-RPS DC input, 11.5VDC, 10.43A

Power Supply

AC/DC, Internal, 120W

Networking Interfaces

(1) 10/100/1000 Mbps RJ45 Ethernet

(1) 1/10 Gbps SFP+ Ethernet

Management Interface

Ethernet In-Band Management

ESD/EMP Protection

Air: ± 12kV, Contact: ± 8kV

Operating Temperature

-5 to 40° C (23 to 104° F)

Operating Humidity

5 - 95% Noncondensing

Certifications

FCC, CE, IC

LEDs
System

(1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue/White: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted

Ethernet

Green: 1000 Mbps, Amber: 10/100 Mbps

SFP+

White: 10 Gbps, Green: 1 Gbps

HDD

Amber: Disk Error, White: Disk Detected

RPS

Blue: Ready

  • Works with UniFi Protect Software
  • Add 50 cameras to your system to cover every angle
  • Free remote access for streaming and viewing your recordings
  • Your video is stored on your own secure hardware, not a cloud server

    Note: stackable support for multiplying capacity is coming soon





Product Files
Video Presentation
Technical Info
Installation

The Network Video Recorder (UNVR) is a business-grade network video recorder that provides data redundancy and long-term storage capabilities (up to 30 days of storage for 15 4K cameras or 50 1080p cameras).

The UNVR is a UniFi OS Console that runs the pre-installed UniFi Protect application and has spacious storage for up to 4 compatible 2.5” or 3.5" HDDs. The powerful, easy-to-use UNVR can be deployed in minutes and support systems with up to 50 cameras. Combining the best features of Cloud and onsite surveillance systems, UniFi Protect gives you centralized, local, low-latency access to all of your live camera feeds and recordings, as well as remote access from anywhere in the world via unifi.ui.com and the Protect mobile app. The UNVR also offers sophisticated data protection and continuity by automatically applying RAID 1 or 5 configuration based on the number of HDDs installed.

Features:

      • (4) 2.5"/3.5" HDD bays
      • (1) 10G SFP+ port
      • (1) GbE RJ45 port
      • 1U-sized, rack-mountable console (kit included)
      • Pre-installed UniFi Protect application
      • Automated RAID 1 or RAID 5 HDD configuration
      • Can be connected to the USP RPS (sold separately) for enhanced power supply failover protection
      • Allows you to easily scale your deployment by connecting additional UniFi devices

Note: Please ensure your HDDs meet Ubiquiti's general guidelines and aren't included in our list of incompatible models.



Simply scalable building video security

The platform designed for multi-camera deployments


4x HDD Bay
2.5”/3.5” Drive Bay

10 Gbps SFP+
10 Gbps SFP+ Port

1 Gbps RJ45
Gigabit RJ45 Port

Plug & Play System
UniFi Protect System with NVR

RAID 1 or RAID 5
Automated secure RAID 1 or RAID 5 configuration

Redundant Power
Redundant Power Support

Store your footage for 30 days

Enterprise network video recorder, can provide up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras

Redundant power support

Proprietary redundant power system designed to protect from sudden power supply module failure. Use USP-RPS* or USW-Mission-Critical**
* Sold separately ** Coming soon

Automized Secure RAID1/5 Configuration

The UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software

4k Cameras
4
HD Cameras
8




Storage for
38 days
Minimum 26 days of continuous motion recording





Know more about your network than ever before

Keep an Eye on Your Property From Any Device From Anywhere









Product Specifications
Mechanical
Dimensions

442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")

Weight

Without Rackmount Brackets: 5.11 kg (11.27 lb)
With Rackmount Brackets: 5.20 kg (11.46 lb)

Enclosure Material

SGCC Steel

Hardware
Processor

Quad-Core ARM® Cortex®-A57 at 1.7 GHz

System Memory

4 GB

On-Board Flash Storage

8 GB

Max. Power Consumption

100W

Max. Power Budget for Drives

75W

Power Method

(1) Universal AC input, 100-240VAC, 2A Max, 50/60 Hz

(1) USP-RPS DC input, 11.5VDC, 10.43A

Power Supply

AC/DC, Internal, 120W

Networking Interfaces

(1) 10/100/1000 Mbps RJ45 Ethernet

(1) 1/10 Gbps SFP+ Ethernet

Management Interface

Ethernet In-Band Management

ESD/EMP Protection

Air: ± 12kV, Contact: ± 8kV

Operating Temperature

-5 to 40° C (23 to 104° F)

Operating Humidity

5 - 95% Noncondensing

Certifications

FCC, CE, IC

LEDs
System

(1) Power, Blue/White
Flashing White: Bootup in Progress
Flashing Blue/White: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted

Ethernet

Green: 1000 Mbps, Amber: 10/100 Mbps

SFP+

White: 10 Gbps, Green: 1 Gbps

HDD

Amber: Disk Error, White: Disk Detected

RPS

Blue: Ready

  • Works with UniFi Protect Software
  • Add 50 cameras to your system to cover every angle
  • Free remote access for streaming and viewing your recordings
  • Your video is stored on your own secure hardware, not a cloud server

    Note: stackable support for multiplying capacity is coming soon
