Vertical Cable 059-498SMESG Shielded Outdoor UV Rated Cat5e 350-MHz 8-Conductor 4-Pair 24-gauge CMX Solid

This Shielded Cat5e Outdoor Rated Ethernet Cable with UV jacket and messenger is a high performance data communication cable suitable for 350MHz high speed data applications and fast gigabit ethernet. It has excellent attenuation and crosstalk characteristics and exceeds EIA/TIA 568 C.2 specification. With its UV resistant jacket, this ethernet cable is designed for outdoor installations where resistance to sun rays is important. It is also equipped with galvanized steel messenger to support the cable in aerial installations. This cable is verified by ETL to be type CMX. The wires are 24AWG in size and are made of solid bare (pure) copper conductors. All 4 pairs are easily identified by colour stripes. The insulation material is PE and the jacket material is LLDPE. This cable is supplied in 1000 feet wooden spool and sequential length markings are printed on the jacket.

Benefits

• Ideal for Outdoor Aerial Applications
• Galvanized Steel Messenger for Support
• Shielded to protect against EMI/RFI
• Drain wire to prevent ESD
• Easily Identified Color-Striped Pairs
• 24AWG Solid Copper Conductors
• Exceeds TIA/EIA-568C.2 Standards
• Supports PoE (Type 1) IEEE 802.3af (12.95W)
• ETL Listed RoHS Compliant

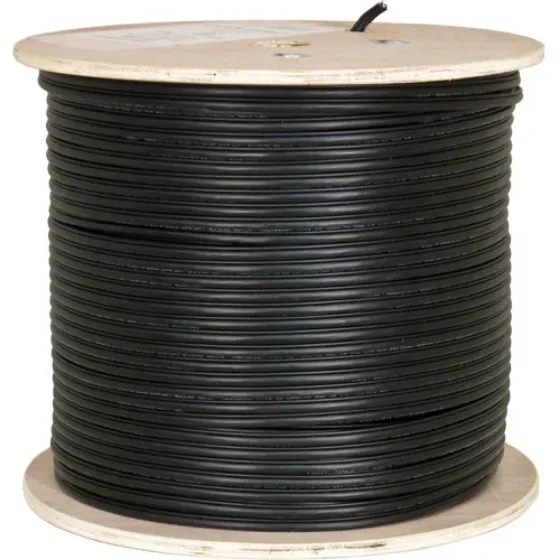

• 1000ft Wooden Spool
