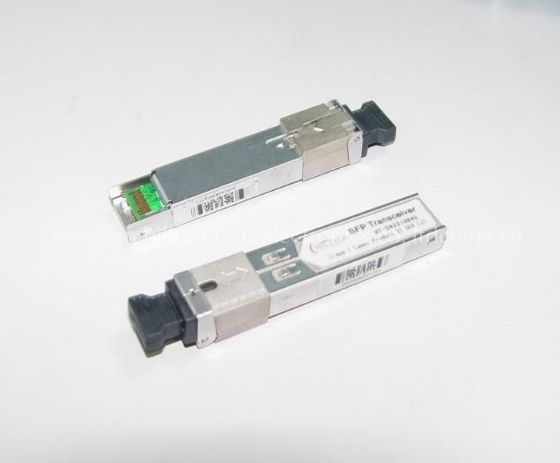

Viscore VT-S3405D 1.25Gb/s SFP Optical Transceiver with DDMI

Availability: In stock
Delivery date: Lead Time 7 - 10 days
Manufacturer: Viscore Technologies
Viscore VT-S3405D 1.25Gb/s SFP Optical Transceiver with DDMI (Refurb)
$79.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

VT-S3405D 1.25Gb/s SFP Optical Transceiver with DDMI

1.25Gb/s SFP Optical Transceiver with DDMI
Hot Pluggable, Duplex LC, +3.3V, 850nm, VCSEL, Multi-Mode, 0.55km

Applications:

² Gigabit Ethernet

² 1x Fiber Channel

² Switch to Switch Interface

² Router/Server Interface

² Other Optical Links

Specification:

Transmitter Section:

Parameter

Symbol

Min.

Typical

Max.

Unit

Data Rate

B

-

1.25

-

Gb/s

Centre Wavelength

λc

830

850

860

nm

Output Spectral Width

△λ

-

-

0.85

nm

Average Output Power

Po

-9.5

-

-4

dBm

Extinction Ratio

E.R.

9

-

-

dB

Data Input Voltage-High

VIHS

Vcc-1.16

-

Vcc-0.89

V

Data Input Voltage -Low

VILS

Vcc-1.82

-

Vcc-1.48

V

Supply Current

ICC

-

90

130

mA

Output Optical Eye

Compliant with IEEE802.3Z

Receiver Section:

Parameter

Symbol

Min.

Typical

Max.

Unit

Receive Sensitivity

Pmin

-

-

-17

dBm

Maximum Input Power

PMAX

-3

-

-

dBm

RX_LOS Assert Level

LOS A

-30

-

-

dBm

RX_LOS De Assert Level

LOS D

-

-

-18

dBm

Hysteresis

-

-

2.0

-

dBm

Output High Voltage

VOH

Vcc-1.03

-

Vcc-0.89

V

Output Low Voltage

VOL

Vcc-1.82

-

Vcc-1.63

V

Operating Wavelength

λc

770

-

860

nm

Supply Current

ICC

-

80

110

mA

VT-S3405D 1.25Gb/s SFP Optical Transceiver with DDMI

1.25Gb/s SFP Optical Transceiver with DDMI
Hot Pluggable, Duplex LC, +3.3V, 850nm, VCSEL, Multi-Mode, 0.55km

Applications:

² Gigabit Ethernet

² 1x Fiber Channel

² Switch to Switch Interface

² Router/Server Interface

² Other Optical Links

Specification:

Transmitter Section:

Parameter

Symbol

Min.

Typical

Max.

Unit

Data Rate

B

-

1.25

-

Gb/s

Centre Wavelength

λc

830

850

860

nm

Output Spectral Width

△λ

-

-

0.85

nm

Average Output Power

Po

-9.5

-

-4

dBm

Extinction Ratio

E.R.

9

-

-

dB

Data Input Voltage-High

VIHS

Vcc-1.16

-

Vcc-0.89

V

Data Input Voltage -Low

VILS

Vcc-1.82

-

Vcc-1.48

V

Supply Current

ICC

-

90

130

mA

Output Optical Eye

Compliant with IEEE802.3Z

Receiver Section:

Parameter

Symbol

Min.

Typical

Max.

Unit

Receive Sensitivity

Pmin

-

-

-17

dBm

Maximum Input Power

PMAX

-3

-

-

dBm

RX_LOS Assert Level

LOS A

-30

-

-

dBm

RX_LOS De Assert Level

LOS D

-

-

-18

dBm

Hysteresis

-

-

2.0

-

dBm

Output High Voltage

VOH

Vcc-1.03

-

Vcc-0.89

V

Output Low Voltage

VOL

Vcc-1.82

-

Vcc-1.63

V

Operating Wavelength

λc

770

-

860

nm

Supply Current

ICC

-

80

110

mA
