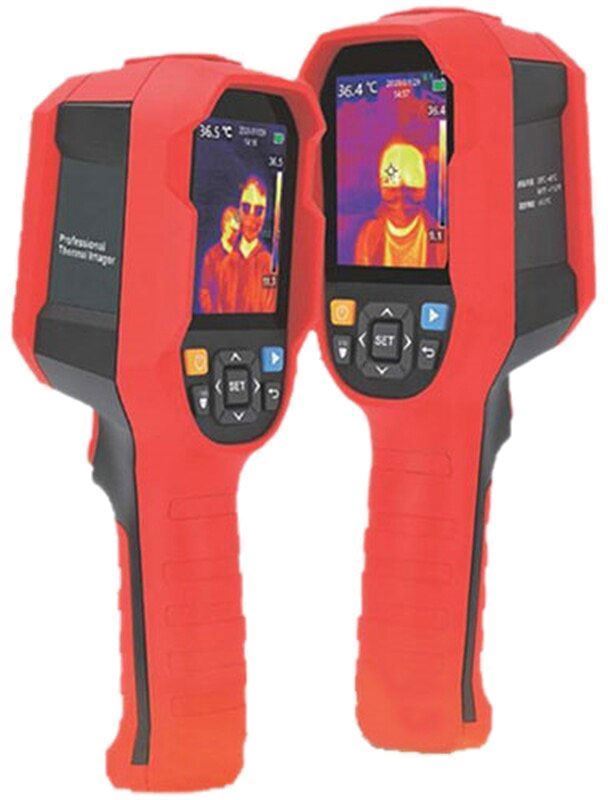

Uni-2165H Handheld thermal Imager

Be the first to review this product

SKU: 2165H

Delivery date: Out of Stock

Manufacturer: UNV

UNI-2165H Thermal Imager for Measuring Body Temperature. This hand held thermal imager is used to detect the body temperature or body heat from people quickly and easily. Hand held and portable with a built in rechargeable battery, this portable body heat detector has a built in alarm that can be set to trigger when a fever is detected.

$2,759.00

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

Key Features:

Specs

Uncooled focal plate sensor
Temperature range 30°C ~ 45°C (86°F ~ 113° F)
Resolution: .1° C (32.18°F)
Accuracy: ± .5°C (32.9°F) at 1m (3ft)
Minimum measuring distance: 15cm
Temperature measurement response time: ≤5OOms (95% of reading)
Thermal resolution: 19200 (160 X 120)
Pixel dimensions: 12µm
Palettes of Black/white, red/white, blue/white, iron red, rainbow
Bandwidth of infraed spectroscopy: 8~14µm
Field of view: (FOV) S6°(H) X 42°(V)
Instantaneous field of view (IFOV): 6mrad
Thermal imaging sensitivity: ≤5Omk
Frame rate: <9Hz
Temperature display: Center temperature measurement and high temperature tracking (default)
Image format: BMP
Image modes: Thermal imagery
Temperature measuring point: Besides central point, 3 temperature measuring points can be added
Display resolution: 320X240
PC analysis software (PC)
Data communication: Type-C USB
Auto power off: Selectable (Smin, lOmin, 30min), 30min auto power off (default)
Service time: ≥6 hours
Charging time: 4 hours
Image storage: Micro SD Card

General Characteristics

Power: A single Li-ion 3.7V/5000mAh 26650 battery
Display: 2.8"TFT LCD
Product color: Red + grey
Product size: 236mm x 75.5mm x 86mm
Standard accessories: Manual, Type-C USB cable, 16GB TF card
Standard carton gross weight: 2.2kg

Overview
Specifications
Reviews
Contact Us

Key Features:

Specs

Uncooled focal plate sensor
Temperature range 30°C ~ 45°C (86°F ~ 113° F)
Resolution: .1° C (32.18°F)
Accuracy: ± .5°C (32.9°F) at 1m (3ft)
Minimum measuring distance: 15cm
Temperature measurement response time: ≤5OOms (95% of reading)
Thermal resolution: 19200 (160 X 120)
Pixel dimensions: 12µm
Palettes of Black/white, red/white, blue/white, iron red, rainbow
Bandwidth of infraed spectroscopy: 8~14µm
Field of view: (FOV) S6°(H) X 42°(V)
Instantaneous field of view (IFOV): 6mrad
Thermal imaging sensitivity: ≤5Omk
Frame rate: <9Hz
Temperature display: Center temperature measurement and high temperature tracking (default)
Image format: BMP
Image modes: Thermal imagery
Temperature measuring point: Besides central point, 3 temperature measuring points can be added
Display resolution: 320X240
PC analysis software (PC)
Data communication: Type-C USB
Auto power off: Selectable (Smin, lOmin, 30min), 30min auto power off (default)
Service time: ≥6 hours
Charging time: 4 hours
Image storage: Micro SD Card

General Characteristics

Power: A single Li-ion 3.7V/5000mAh 26650 battery
Display: 2.8"TFT LCD
Product color: Red + grey
Product size: 236mm x 75.5mm x 86mm
Standard accessories: Manual, Type-C USB cable, 16GB TF card
Standard carton gross weight: 2.2kg
