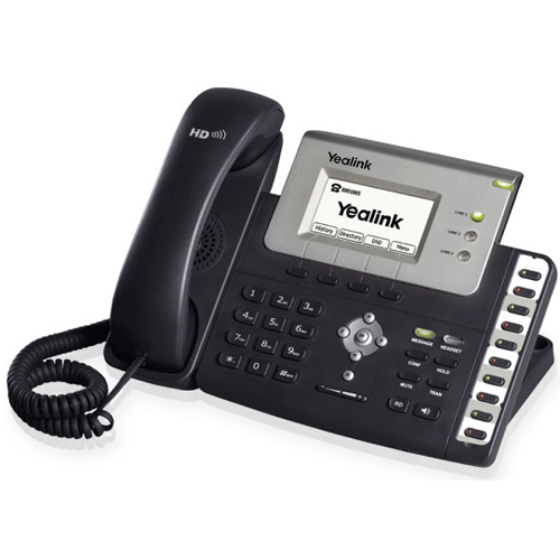

Yealink SIP-T26P IP Phone

3 VoIP accounts, hotline, emergency call
SIP-T26P Call waiting, call transfer, call forward
Hold, mute, flash, auto-answer, redial
PoE Ready 3-way conference, DND, speed dial
XML Phonebook search/import/export
Black list, call history (100 entries)
Volume adjustment, ring tone selection
Tone scheme, System log
Multi-language (more than 20)
Supports up to 6 expansion modules

TI TITAN chipset and TI voice engine • 132x64 graphic LCD • 3
VoIP accounts, Broadsoft validated • HD Voice: HD Codec, HD
Handset, HD Speaker • 45 keys including 13 programmable keys
• BLF/BLA, SMS, Voicemail, Intercom • Localized language, XML
phonebook • FTP/TFTP/HTTP, PnP Auto-provision •
SRTP/HTTPS/TLS, VLAN, QoS • PoE, Headset, 2xRJ45,
Expansion module

Video:

Phone Features
3 VoIP accounts, hotline, emergency call
Call waiting, call transfer, call forward
Hold, mute, flash, auto-answer, redial
3-way conference, DND, speed dial
XML Phonebook search/import/export
Black list, call history (100 entries)
Volume adjustment, ring tone selection
Tone scheme, System log
Multi-language (more than 20)
Supports up to 6 expansion modules

IP PBX System Integration
Dial plan, dial-now
SMS, Voicemail, MWI
BLF/BLA, intercom, paging
Call park, call pickup
Distinctive ringtone

Codecs and Voice Features
Wideband codec: G.722
Narrowband codec: G.711, G.723.1, G.726, G.729AB
VAD, CNG, AEC, PLC, AJB, AGC
Full-duplex speakerphone with AEC

Network Features
SIP v1 (RFC2543), v2 (RFC3261)
NAT Traversal: STUN mode
DTMF: In-Band, RFC2833, SIP Info
Proxy mode and peer-to-peer SIP link mode
IP Assignment: Static/DHCP/PPPoE
TFTP/DHCP/PPPoE client
HTTP/HTTPS server
DNS client
NAT/DHCP server

Management
FTP/TFTP/HTTP/PnP auto-provision
Configuration: browser/phone/auto-provision
Direct IP call without SIP proxy
Dial number via SIP server
Dial URL via SIP server

Security
HTTPS (server/client)
SRTP (RFC3711)
Transport Layer Security (TLS)
VLAN (802.1 pq), QoS
Digest authentication using MD5/MD5-sess
Secure configuration file via AES encryption
Phone lock for personal privacy protection
Admin/user configuration mode

Physical Features
TI TITAN Chipset
132x64 graphic LCD
45 keys including 13 programmable keys
1xRJ9 (4P4C) handset port
1xRJ9 (4P4C) headset port
2xRJ45 10/100M Ethernet ports
1XRJ12 (6P6C) expansion module port
Power adapter (optional):

AC 100~240V input and DC 5V/1.2A output
Power over Ethernet (IEEE 802.3af)
Power consumption (PSU): 1.2-1.9W
Power consumption (PoE): 1.8-2.7W
Dimension(W*D*H*T):
273mm*200mm*158mm*58.5mm

Operating humidity: 10~95%
Operating temperature: -10~50°C
